Top-Rated Bakelite Sheet Design for Mechanical Stiffness

Understanding Mechanical Stiffness in Bakelite Sheet Design

Mechanical stiffness is one of the most critical performance indicators for engineers selecting structural insulation materials. In tooling, fixture fabrication, and medium-voltage electrical applications, a material’s ability to resist deformation under sustained pressure directly determines the longevity and reliability of the equipment it supports. This is precisely the challenge that phenolic paper laminated sheets—commonly known as Bakelite sheets—are engineered to solve.

Why Structural Rigidity Matters for Industrial Fixtures

Rework tooling and test fixtures require mechanical stiffness and basic electrical isolation without the high cost associated with glass-epoxy sheets. When a fixture flexes or deforms under repeated mechanical loading, it introduces measurement errors, reduces test accuracy, and shortens the operational life of the tooling. Selecting a laminate with proven flexural and compressive properties is therefore not a cosmetic decision—it is a functional requirement for maintaining dimensional accuracy across thousands of production cycles.

Core Engineering Specifications That Define Mechanical Stiffness

Shenzhen Xiongyihua Insulation Materials Co., Ltd., operating under the XYH Plastic Insulation brand, manufactures the 3021 Phenolic Paper Laminated Sheet, a cost-effective, high-rigidity structural insulation sheet purpose-built for fixture fabrication and medium-voltage electrical setups.

Flexural and Compressive Strength Benchmarks

The 3021 Bakelite Sheet delivers a flexural strength of ≥120 MPa and a compressive strength of ≥250 MPa, allowing it to resist mechanical deformation under high pressure. These figures are directly relevant to designers evaluating stiffness, since flexural strength indicates a material’s resistance to bending forces, while compressive strength reflects its capacity to withstand axial loading without structural failure. Together, these two metrics form the foundation of the sheet’s mechanical reliability in demanding tooling environments.

Beyond raw strength figures, the material is engineered for practical machinability. It can be easily milled, drilled, and tapped without chipping, which speeds up jig and fixture manufacturing while preserving the structural integrity established by its flexural and compressive ratings. This machinability is a decisive factor for fabricators who need rapid turnaround on complex fixture geometries without compromising rigidity.

Electrical Insulation and Anti-Static Performance

While stiffness is the primary design driver, the 3021 sheet also maintains a dielectric strength of ≥12.1 KV/m perpendicular to laminations, making it safe for use in distribution boards and switchboxes. For sensitive electronics assembly, XYH offers ESD configurations rated between 10^6 and 10^9 ohms, safeguarding components during handling and testing without sacrificing the sheet’s inherent structural stiffness.

Material Composition and Manufacturing Precision

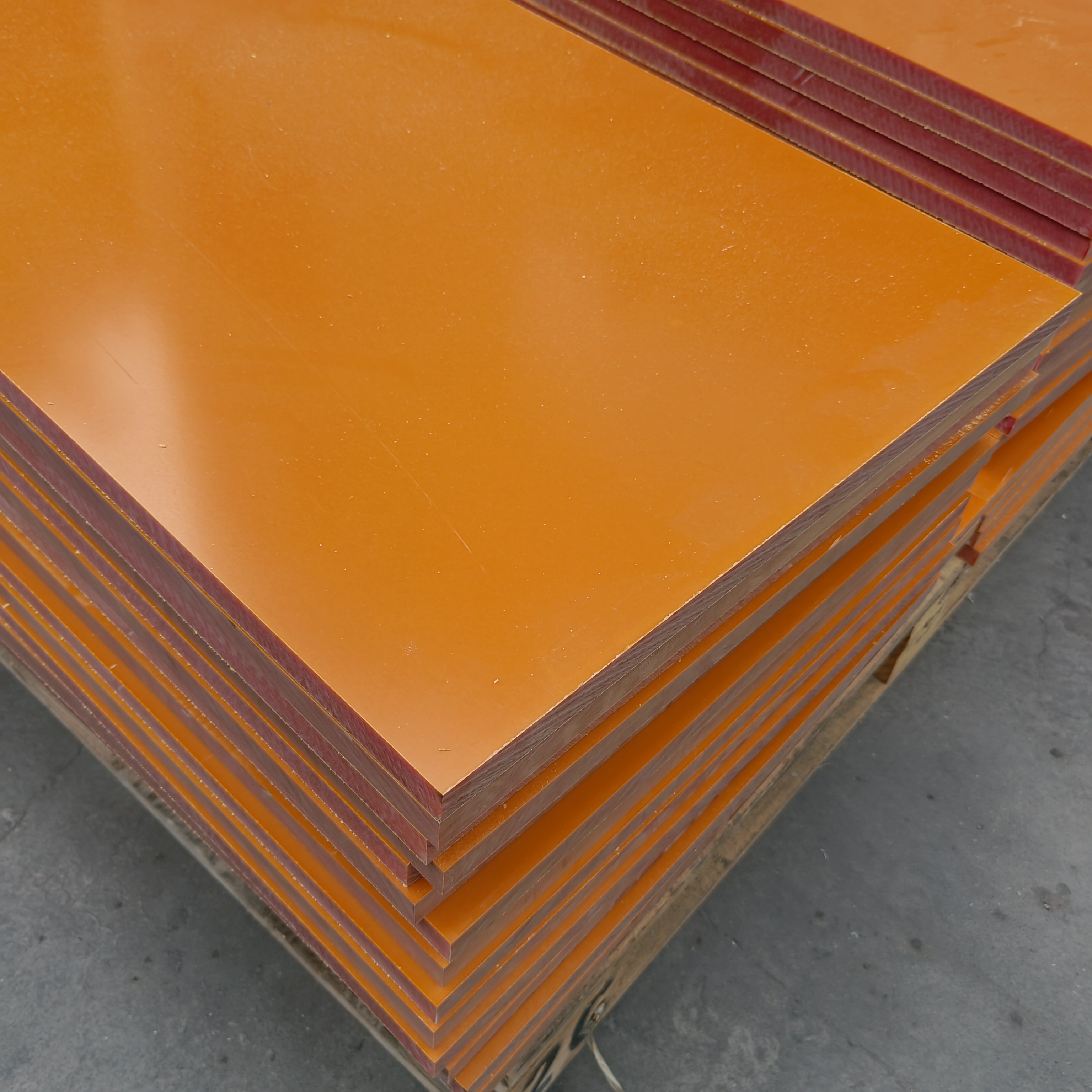

The 3021 Bakelite Sheet has a density of 1.45–1.5 g/cm³ and continuous heat resistance ranging from 100°C to 120°C, confirming that its stiffness is retained even under sustained operating temperatures typical of electrical enclosures and mechanical jigs. It is available in orange and black finishes, with thicknesses spanning 3–100mm, and can be further processed into custom CNC-machined components to match exact fixture geometries.

This combination of density, thermal resistance, and dimensional range allows engineers to select a configuration that matches the specific stiffness-to-weight ratio required by their application, whether that involves large-format distribution switchboxes or compact ICT/ATE test fixtures.

Real-World Application: High-Precision PCB Test Fixtures

The practical value of stiffness-optimized Bakelite design is illustrated by a documented case involving a prominent global electronics contract manufacturer that required high-precision fixture boards for smartphone circuit board testing. On automated assembly lines, minor substrate warping or static accumulation can cause circuit failures during high-speed electrical testing.

Shenzhen Xiongyihua supplied custom-machined antistatic Bakelite sheets (ESD Bakelite) with exact thickness tolerances and flat finishes. The result: the electronics manufacturer achieved a 98% defect-free test rate and a 50% reduction in manual calibration time, ultimately boosting daily assembly line throughput by 20% while eliminating static discharge damage during testing. This case demonstrates how mechanical stiffness, combined with dimensional consistency and anti-static properties, translates directly into measurable production outcomes.

Delivery, Customization, and Quality Assurance

Beyond the material itself, the surrounding manufacturing ecosystem influences how effectively a stiffness-critical sheet performs in the field. XYH Plastic Insulation operates a One-Stop Integrated Solution covering raw material production, custom design assistance, CNC precision fabrication, and global logistics. Bulk standard materials are shipped within 3 to 7 working days, while complex CNC-machined projects are completed and packaged within 15 to 20 working days.

Every batch is manufactured under a quality framework that includes IATF 16949:2016 Quality Management System Certification, ISO 9001:2015 Quality Management System Certification, and ISO 14001:2015 Environmental Management System Certification. These certifications specifically cover the production, processing, and sales of electronic insulation materials and engineering plastic materials, reinforcing consistency in the mechanical properties—including stiffness—that engineers rely on for repeat orders.

Why Shenzhen Xiongyihua Insulation Materials Stands Out

Founded on September 26, 2006, Shenzhen Xiongyihua Insulation Materials Co., Ltd. integrates complete in-house sheet and rod manufacturing with over 100 advanced CNC engraving machines and custom fabrication services. The company operates a 5,000-square-meter warehouse holding over 1,000 tons of raw materials, supporting rapid delivery times and tight-tolerance production matching customized specifications such as those required for stiffness-critical Bakelite tooling.

With headquarters in Shenzhen and a global footprint spanning 14 domestic branches and 5 overseas branches across Vietnam, Indonesia, Turkey, and Russia, XYH Plastic Insulation serves industrial clients in over 20 countries. Its engineering team, with more than 20 years of experience in structural insulation design, applies this expertise to formulations like the 3021 Phenolic Paper Laminated Sheet, ensuring that mechanical stiffness requirements are consistently met across sample prototyping, high-volume CNC milling and drilling, and dedicated after-sales support.

Conclusion

Selecting a Bakelite sheet for mechanical stiffness requires careful attention to flexural strength, compressive strength, machinability, and dimensional consistency. The 3021 Phenolic Paper Laminated Sheet from Shenzhen Xiongyihua Insulation Materials Co., Ltd. addresses each of these requirements with documented technical specifications and a manufacturing infrastructure designed to support rapid, tight-tolerance delivery. For engineers evaluating structural insulation options where stiffness, cost efficiency, and electrical safety must coexist, this material profile offers a clearly defined and verifiable set of performance benchmarks.
