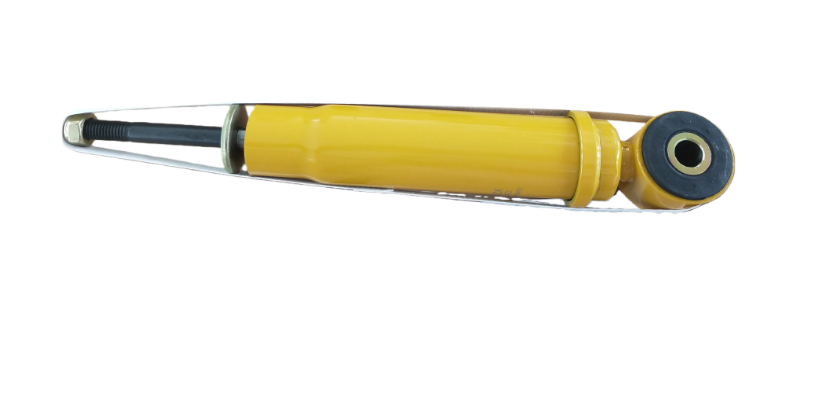

Scania 310620Truck Series Shock Absorber

For heavy-duty trucks, suspension performance directly affects driving comfort, vehicle stability, cargo protection, and component durability. Trucks operating on highways, construction routes, logistics roads, and uneven terrain are constantly exposed to road impacts and vibration. Without an effective suspension system, these forces can be transferred directly to the chassis and cab.

For Scania truck series, air springs and shock absorbers work together to reduce road bumps and control suspension movement. While the air spring supports the vehicle load and absorbs part of the road impact, the shock absorber controls excessive suspension movement and helps the vehicle return to a stable position.

Why Suspension Performance Matters for Scania Trucks

Heavy trucks operate under substantially different loads depending on cargo weight, road conditions, and operating conditions. A suspension system therefore needs to provide both load support and effective vibration control.

Road surfaces can generate:

• Vertical impacts

• Continuous vibration

• Suspension compression and rebound

• Chassis movement

• Cab vibration

• Tire loading changes

If these forces are not properly controlled, they can affect driver comfort and place additional stress on suspension components, chassis structures, and cargo.

A properly functioning air spring and shock absorber system helps create a more controlled connection between the wheels and the vehicle body.

The Role of Air Springs in Truck Suspension

An air spring uses compressed air to support the vehicle rather than relying solely on a conventional steel spring.

As the truck passes over an uneven road surface, the air spring can compress and expand according to changes in suspension movement. This provides a degree of flexibility while supporting the vehicle's load.

For heavy-duty applications, air suspension can offer several practical advantages:

• Improved ride comfort

• Better vibration isolation

• Adjustable load support

• Reduced transmission of road shocks

• Improved protection for sensitive cargo

• Better suspension response under varying loads

Because truck loads can change significantly between empty and fully loaded operation, the ability of an air suspension system to accommodate different loading conditions is particularly valuable.

How Shock Absorbers Control Suspension Movement

An air spring alone cannot completely control suspension movement.

When a truck encounters a bump, the suspension may compress and then rebound. Without sufficient damping, the vehicle can continue oscillating after the initial road impact.

This is where the shock absorber becomes important.

The shock absorber converts part of the suspension movement into controlled resistance. It helps reduce excessive compression and rebound, allowing the wheel and vehicle body to return to a more stable position.

In practical terms, the air spring helps absorb and support, while the shock absorber helps control and damp.

The two components therefore perform complementary functions.

Reducing Road Bumps for Scania Trucks

One of the main objectives of an air spring and shock absorber system is to reduce the effects of uneven road surfaces.

When a truck travels over potholes, joints, speed bumps, rough pavement, or uneven roads, the wheels need to move vertically without transferring the full impact to the chassis.

The air spring provides compliant suspension support, while the shock absorber controls the resulting movement.

This combination can help reduce:

• Harsh vertical impacts

• Excessive bouncing

• Chassis vibration

• Cab movement

• Repeated suspension oscillation

The result is a more controlled ride, particularly when the truck is carrying heavy loads or operating over poor road surfaces.

Benefits for Long-Distance Truck Drivers

Driver comfort is an important consideration for commercial vehicles that travel long distances.

Continuous vibration and repeated road impacts can contribute to driver fatigue. A well-maintained suspension system can help reduce unnecessary movement transmitted to the cab.

Air suspension combined with properly matched shock absorbers can provide a smoother and more controlled driving environment.

For long-haul Scania truck operators, this can be particularly valuable because vehicles may remain on the road for many hours each day.

A comfortable suspension system does not eliminate all road vibration, but it can significantly improve how the vehicle responds to road irregularities.

Protecting Cargo During Transportation

Suspension performance is also important for cargo protection.

Some goods are sensitive to repeated impacts and vibration. Excessive suspension movement can increase the mechanical forces acting on cargo during transportation.

By reducing harsh impacts and controlling vehicle movement, a properly functioning suspension system can provide a more stable platform for transported goods.

This is especially relevant for:

• Precision equipment

• Electronics

• Fragile goods

• Packaged products

• Temperature-controlled cargo

• High-value commercial shipments

Cargo protection depends on the entire vehicle configuration, including tires, suspension geometry, load distribution, and driving conditions. However, suspension components are an important part of the overall system.

Air Springs and Shock Absorbers Must Work Together

Replacing only one suspension component may not fully restore vehicle performance if the other components are also worn.

For example, a new air spring cannot compensate for a severely worn shock absorber. Likewise, a new shock absorber cannot solve an air spring that is leaking or structurally damaged.

When suspension performance changes, technicians should inspect the complete system.

Important inspection areas include:

• Air spring condition

• Air leakage

• Rubber bellows

• Mounting points

• Shock absorber leakage

• Shock absorber damping performance

• Suspension bushings

• Fasteners and brackets

• Ride height

• Tire condition

A complete inspection can help identify the actual source of poor ride quality.

Common Signs of Suspension Problems

Truck operators should pay attention to changes in vehicle behavior.

Possible signs of air spring or shock absorber problems include:

Excessive Bouncing

If the truck continues bouncing after passing over a bump, the shock absorber may no longer provide sufficient damping.

Uneven Ride Height

A damaged or leaking air spring can cause one side of the vehicle to sit lower than expected.

Increased Cab Vibration

More vibration transmitted into the cab may indicate deterioration of suspension components.

Abnormal Tire Wear

Suspension problems can affect wheel movement and tire contact with the road, potentially contributing to irregular tire wear.

Air Pressure Loss

A damaged air spring or connection may cause air leakage and prevent the suspension from maintaining the required ride height.

Unusual Suspension Noise

Knocking, squeaking, or other abnormal sounds should be investigated rather than ignored.

Early inspection can help prevent a relatively small suspension problem from developing into a larger repair issue.

Choosing Replacement Air Springs and Shock Absorbers

When replacing suspension components on a Scania truck, compatibility is critical.

Before purchasing a replacement component, buyers should confirm:

• Truck series and application

• Axle position

• Suspension configuration

• Original component specifications

• Mounting dimensions

• Working pressure

• Load requirements

• Operating environment

• Product quality and durability

The replacement part should be selected according to the specific vehicle configuration rather than simply based on appearance or general dimensions.

For commercial vehicles, correct fitment is essential because suspension components operate under significant mechanical loads.

Why Quality Matters in Heavy-Duty Suspension Components

Air springs and shock absorbers are safety- and performance-related components. They operate continuously under changing loads, vibration, temperature variations, and road impacts.

A quality suspension component should therefore provide consistent mechanical performance throughout its service life.

Manufacturing quality can affect factors such as:

• Material durability

• Sealing performance

• Dimensional accuracy

• Fatigue resistance

• Damping consistency

• Mounting reliability

For fleet operators, reliable replacement parts can also help reduce unexpected downtime and maintenance interruptions.

Supporting Better Scania Truck Performance

A truck's suspension system has a direct relationship with ride comfort, handling, cargo protection, and vehicle durability.

For Scania trucks operating in demanding road conditions, combining a properly matched air spring with an effective shock absorber provides a practical approach to controlling road impacts.

The air spring absorbs and supports the load, while the shock absorber manages suspension movement. Together, they help reduce excessive bumping and maintain a more stable ride.

Conclusion

Road bumps and vibration are unavoidable in heavy-duty transportation, but their effects can be controlled through an appropriately designed and maintained suspension system.

Air springs and shock absorbers for Scania truck series play complementary roles in this process. Air springs provide flexible load support and help isolate road impacts, while shock absorbers control compression and rebound to prevent excessive bouncing.

For fleet operators and truck owners, regular inspection and timely replacement of worn suspension components can help maintain ride comfort, cargo protection, and vehicle stability.

When selecting replacement parts, compatibility, material quality, dimensional accuracy, and application requirements should all be considered. A properly matched suspension system can help Scania trucks handle demanding roads with greater stability and provide a more comfortable working environment for drivers.
