Offline PCB Router Machines: Proven Precision for High-Yield Depaneling

Understanding Offline PCB Router Machine Technology and Its Role in Precision Depaneling

For electronics manufacturers evaluating depaneling equipment, the Offline PCB Router Machine category remains a core solution for separating PCBA panels with high precision and minimal mechanical stress. Dongguan SEPRAYS Automation Equipment Co., Ltd., founded in 1993 and specializing in PCB/FPC depaneling equipment and SMT automation, has built its GAM series and ZM series offline router machines around this specific manufacturing need, offering configurations that range from compact single-table units to large-format dual-spindle systems.

Why Offline Router Depaneling Still Matters

Even as inline automation expands across SMT lines, offline router machines continue to serve a distinct purpose: flexible, standalone routing for facilities that require manual loading control, lower initial automation investment, or depaneling stations that operate independently from a continuous production line. SEPRAYS addresses this need through an extensive offline lineup—including the GAM330, GAM330L, GAM330X, GAM330D, GAM330DL, GAM386, GAM300, GAM300L, GAM310A, ZM300N, and ZM300NL—each engineered for specific board sizes, cutting loads, and throughput requirements.

Core Technical Capabilities Across the Offline Lineup

Across these models, several technical foundations remain consistent:

• Cutting accuracy of ±0.05 mm with repeatability of ±0.01 mm, ensuring consistent separation quality across production runs.
• High-speed CCD vision alignment systems, used for automatic position correction and cutting-path accuracy, with intuitive teaching by CCD color image input simplifying programming.
• Automatic tool-change spindles, reducing manual intervention and supporting continuous operation.
• Automatic broken router bit detection, which helps maintain reliable cutting quality by flagging tool issues before they affect output.
• Dual-worktable designs on most models, allowing simultaneous PCBA depaneling and board placement to reduce waiting time—an approach that directly addresses throughput bottlenecks common in manual depaneling stations.
• AC servo motor drive systems paired with precision multi-axis control systems, supporting straight-line, L-shape, U-shape, circle, and arc cutting paths.

Matching Machine Configuration to Production Needs

SEPRAYS’ offline router portfolio is structured around valid cutting size and spindle configuration, giving manufacturers a way to match equipment directly to their board dimensions and volume requirements:

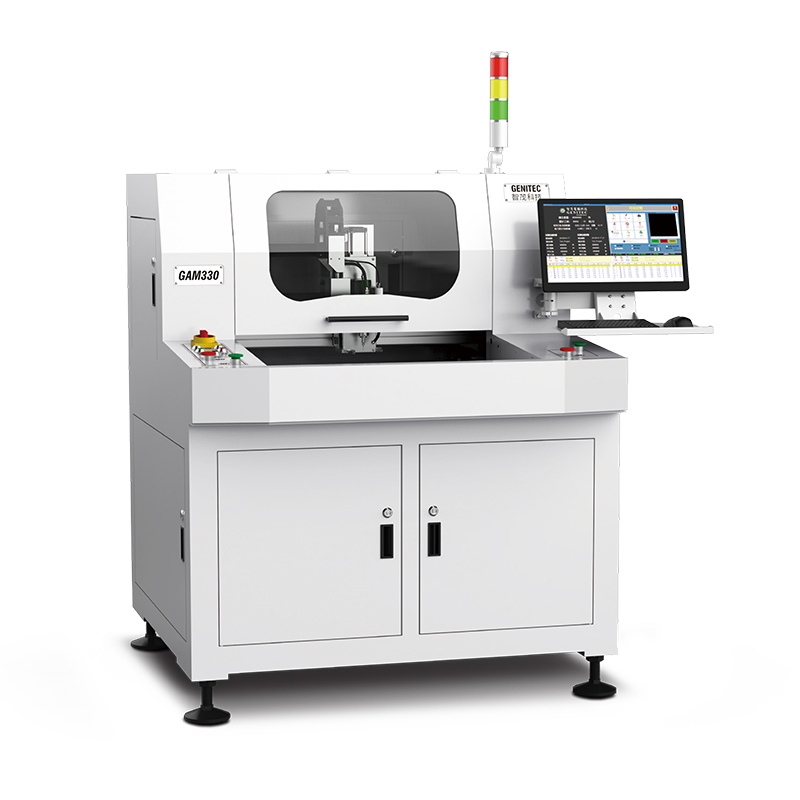

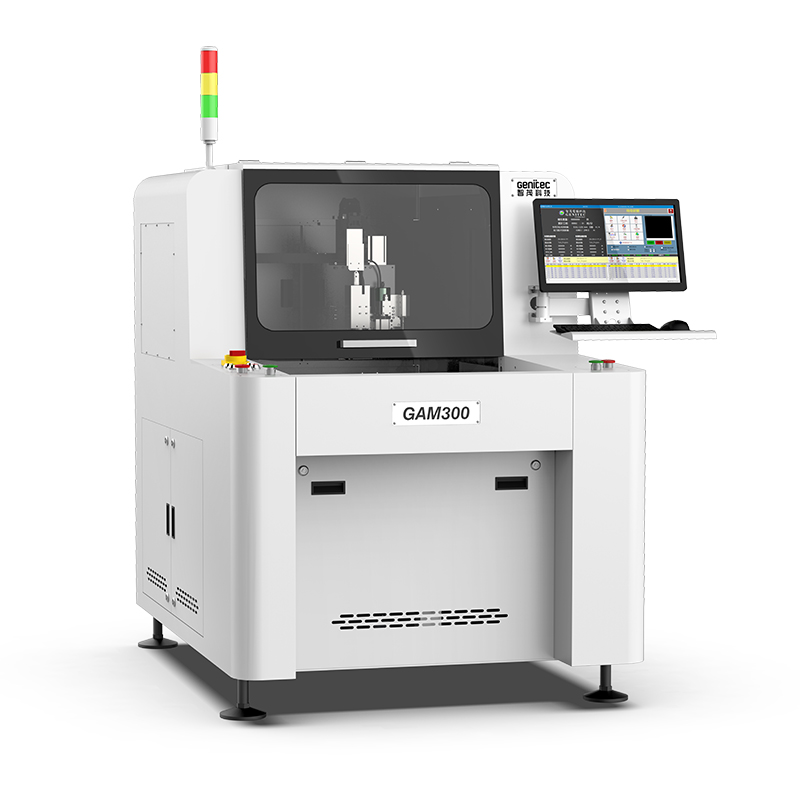

• Compact and standard formats: The GAM330 offers a 300 × 350 mm valid cutting size with dual worktables combinable into a single 300 × 700 mm table, while the GAM300 provides a similar 300 × 350 mm footprint with a combinable 700 × 350 mm configuration. The GAM310A takes a different approach with a single-worktable design, minimizing installation footprint for facilities with limited floor space.
• Large-format processing: For larger PCBA panels, the GAM330L (450 × 500 mm), GAM330X (470 × 650 mm), and GAM300L (450 × 500 mm, combinable to 900 × 500 mm) extend cutting capacity without sacrificing the ±0.05 mm cutting accuracy standard.

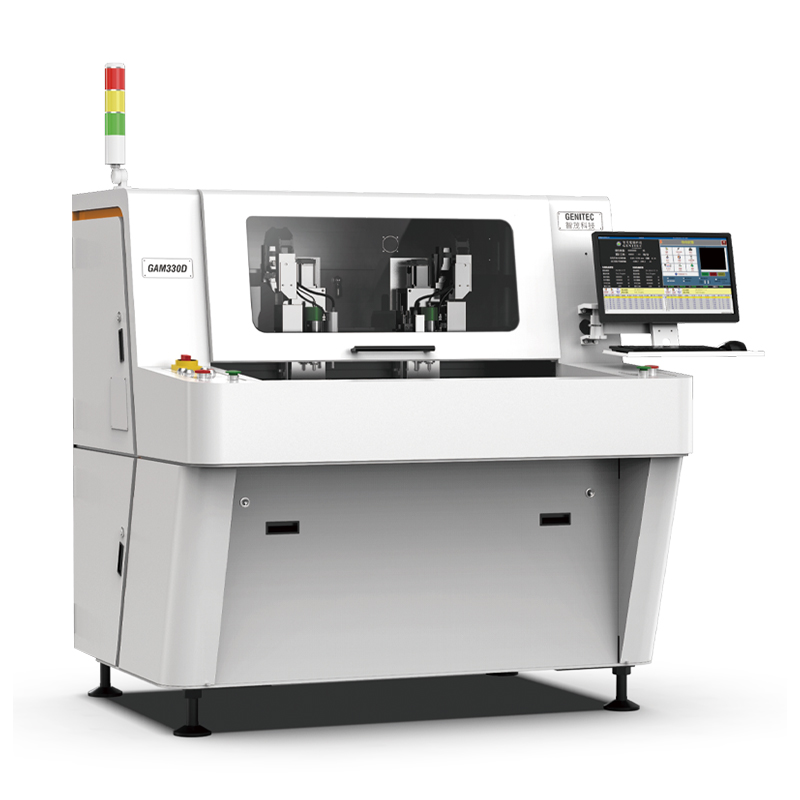

• Dual-spindle efficiency: The GAM330D and GAM330DL incorporate dual high-speed spindles, enabling simultaneous cutting operations on left and right worktables with independently executable cutting programs—a configuration built specifically for facilities prioritizing cutting throughput.
• Downcut specialization: The GAM386 addresses a specific pain point: PCB assemblies with taller components on the upper side. Its downcut router-bit milling design is "especially suitable for PCB assemblies with taller components on the upper side," reducing the risk of component interference during cutting.
• ZM series alternatives: The ZM300N and ZM300NL offer dual-worktable configurations with ESD automatic tool-change spindles reaching speeds up to 100,000 rpm, with the ZM300NL extending valid cutting size to 470 × 520 mm for larger applications.

Addressing Core Customer Pain Points

SEPRAYS’ documented customer pain points in the router depaneling category include component cracking and damage from high cutting stress, low overall equipment effectiveness in high-volume SMT lines, and high labor costs in manual depaneling. The company’s differentiated value proposition speaks directly to these concerns: cutting accuracy of ±0.02mm with repeatability of ±0.01mm on featured platform models, and dual-table designs that enable simultaneous cutting and loading to support higher line utilization.

One documented outcome illustrates this impact at scale. For a global smartphone manufacturer facing high-density mainboard singulation with yield challenges, SEPRAYS’ GAM386 downcut router was deployed as the solution, and the quantified result showed yield improvement from 92.7% to 99.9%. While the GAM386 is more commonly referenced in the company’s inline context, its downcut design philosophy—reducing component interference and cutting stress—extends across the offline GAM386 configuration as well, which shares the same downcut routing approach "especially suitable for PCB assemblies with taller components on the upper side."

Manufacturing Scale and Quality Assurance Behind the Product Line

These offline router machines are not standalone engineering exercises; they are backed by a company structure built for sustained manufacturing reliability. SEPRAYS operates 2 manufacturing facilities spanning 26,000+ m², supported by an R&D team of 80+ and a technical engineering team of 100+. The company holds ISO 9001, ISO 14001, ISO 45001, and CE Certification, alongside 180+ patent certificates—a patent portfolio that includes in-house ESD spindle design, directly relevant to the automatic tool-change spindle systems found throughout the offline router lineup.

Market recognition reinforces this manufacturing foundation. SEPRAYS ranked among the top three in PCB depaneling machine sales in the Chinese market as of 2015, and this position has been sustained alongside the company’s broader claim of more than 3,000 well-known enterprises maintaining long-term cooperation with the brand. Representative customers across automotive electronics, consumer electronics, EMS/ODM, and new energy sectors—including companies like Bosch, BYD, Foxconn, Flex, and CATL—reflect the breadth of industries relying on SEPRAYS’ depaneling equipment, including its offline router machines.

Service Support Beyond the Equipment

Beyond the hardware itself, SEPRAYS backs its offline router machines with a global service network covering 9 domestic cities and 31 countries internationally, offering training, technical service, and after-sales assistance. This service infrastructure matters particularly for offline equipment, where on-site calibration, programming support, and tool-change training directly affect how quickly a facility can reach stable production yields.

Conclusion

For manufacturers weighing offline router depaneling options, SEPRAYS’ GAM and ZM series offer a structured range of configurations—from compact single-table units to large-format dual-spindle systems—each built around consistent cutting accuracy, vision-guided alignment, and automatic tool-change capability. Backed by over 30 years of R&D and manufacturing experience, a sizable patent portfolio, and documented yield-improvement outcomes, the offline PCB router machine lineup represents a well-supported option for facilities seeking precision depaneling without committing to full inline automation.
