DR-200B: Redefining ELISA Testing Efficiency

In the rapidly evolving landscape of clinical diagnostics and laboratory research, the demand for precision, speed, and reliability in optical measurement systems has never been more critical. Laboratories worldwide face persistent challenges: unstable light sources that compromise data integrity, frequent maintenance requirements that inflate operational costs, and limited compatibility with diverse reagent systems. These pain points have driven the industry toward innovative solutions that can deliver consistent, high-throughput performance while minimizing total cost of ownership.

The Evolution of Microplate Reader Technology

Modern laboratories require instruments that can handle high-volume testing without sacrificing accuracy. Traditional microplate readers, while functional, often suffer from limitations that impact workflow efficiency. Light source instability necessitates extended warm-up periods, while conventional bulb-based systems require frequent replacement, leading to unplanned downtime and escalating maintenance expenses. Furthermore, proprietary system architectures restrict compatibility with various ELISA reagent kits, forcing laboratories to invest in multiple instruments or compromise on their preferred testing protocols.

The research community and clinical facilities have long sought a solution that addresses these fundamental challenges while providing an intuitive user experience comparable to modern consumer technology. This convergence of medical-grade precision and user-friendly design represents the next generation of laboratory instrumentation.

Breakthrough Innovation in Optical Measurement

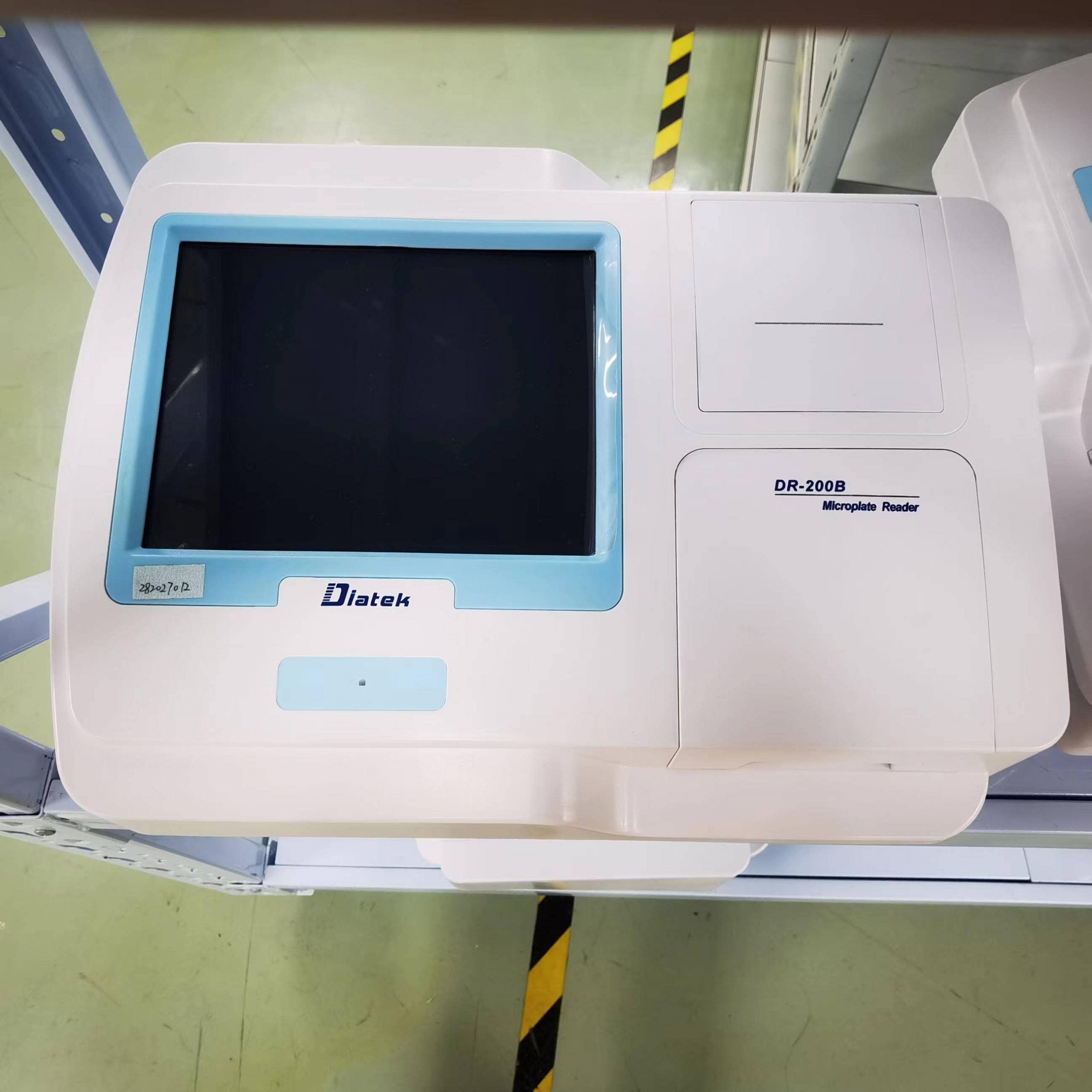

Wuxi hiwell-diatek Instruments co.ltd., a specialized manufacturer with over 20 years of R&D experience in optical measurement systems, has developed the DR-200B Microplate Reader to address these critical industry needs. This advanced instrument represents a significant departure from conventional designs through its implementation of cutting-edge optical technology and intelligent system architecture.

At the core of the DR-200B’s performance advantage lies its proprietary 8+1 optical channel system. Unlike traditional designs, this configuration employs eight independent vertical optical fiber scanning channels complemented by a dedicated reference channel. This ninth channel continuously monitors light source fluctuations in real-time, dramatically reducing stabilization time and minimizing stray light interference. The result is enhanced data integrity that laboratories can rely on for critical diagnostic decisions.

Maintenance-Free Operation Through LED Innovation

One of the most compelling differentiators of the DR-200B is its utilization of LED cold light source technology with a remarkable 5-year service life. This design choice eliminates the recurring expense and operational disruption associated with traditional halogen bulb replacement. Laboratories can redirect resources previously allocated to routine maintenance toward expanding testing capacity or enhancing other aspects of their operations.

The instrument’s wavelength range spans 400-725nm in LED mode or extends to 400-850nm when configured with halogen options, providing flexibility for diverse assay requirements. With reading speeds of single wavelength measurements completed in 3 seconds or less—and double wavelength analysis in 6 seconds or less—the DR-200B enables laboratories to process high sample volumes without workflow bottlenecks.

Precision That Meets Clinical Standards

Technical performance metrics underscore the DR-200B’s suitability for medical-grade applications. The system achieves accuracy within ±0.005A across the 0.000-1.000A range, with repeatability demonstrating a coefficient of variation below 0.2%. Stability remains exceptional at ±0.002A, while linearity maintains an R-value of 0.990 or greater. These specifications align with the stringent requirements of clinical diagnostics, where measurement precision directly impacts patient care decisions.

The instrument holds CE Certification and ISO13485, ISO9001 Certification, meeting international quality standards. Its classification as a Class II medical instrument validates its reliability for clinical applications across hospitals, diagnostic laboratories, and research institutions.

Universal Compatibility Through Open Architecture

Recognizing that laboratories utilize diverse reagent systems and testing protocols, Wuxi hiwell-diatek designed the DR-200B as an Open System platform. This architectural approach ensures compatibility with all varieties of ELISA reagents and kits, eliminating vendor lock-in and preserving laboratory autonomy in protocol selection. Facilities can transition to the DR-200B without disrupting established workflows or requiring costly reagent system changes.

The instrument supports more than 10 calculation algorithms, including Linear, End-point, ABS, Cut-off, Single-point Scale, various regression models (Logarithm, Power, 4PL), and Kinetics. This algorithmic diversity accommodates the analytical requirements of applications spanning clinical biomarker detection, food safety screening, veterinary diagnostics, and academic research.

Intuitive Operation Meets Professional Performance

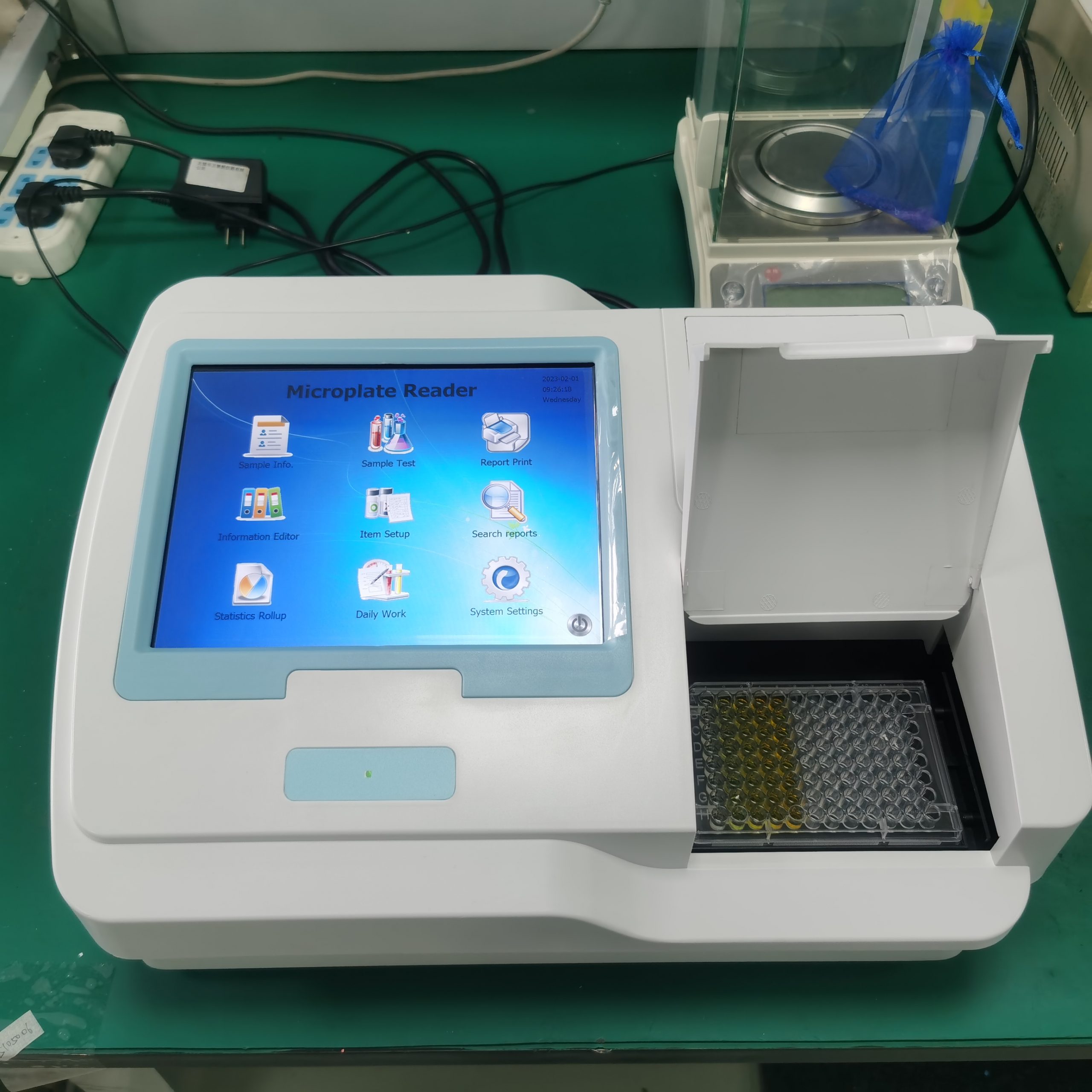

The DR-200B features a 10.4-inch capacitive touchscreen that provides a tablet-like user experience, dramatically simplifying operation compared to traditional button-based interfaces. The Windows 7-based operating system, powered by an X86 core CPU, offers familiar navigation and robust data management capabilities. Laboratories can store up to 20 million test data points and configure 500 distinct test projects, ensuring comprehensive record-keeping for quality assurance and regulatory compliance.

Integrated WiFi functionality and mutual data transmission between the device and PC enable seamless information sharing across laboratory information management systems. Multiple connectivity options—including DVI, VGA, USB-A/B/C, RS-232, and network interfaces—ensure compatibility with existing laboratory infrastructure. The built-in thermal printer supports immediate report generation, while external printer connectivity provides additional flexibility.

Versatile Applications Across Multiple Sectors

The DR-200B’s design adaptability extends its utility across diverse industry verticals. In clinical diagnostics, the system performs ELISA-based immunoassays for biomarker detection, supporting hospital laboratories and diagnostic centers in delivering timely patient results. The capacity to conduct 24 different tests simultaneously on a single 96-well plate enhances throughput during peak demand periods.

Food safety applications benefit from the instrument’s precision in mycotoxin detection, particularly aflatoxin screening at grain stations and food quality control centers. Regulatory compliance requirements demand accurate, reproducible measurements—capabilities the DR-200B delivers consistently.

Veterinary services increasingly rely on sophisticated diagnostic tools comparable to human medical facilities. Pet hospitals and animal health laboratories utilize the DR-200B for disease screening and monitoring, supporting the growing companion animal healthcare sector.

In academic research, universities and institutional laboratories leverage the system’s analytical versatility for drug discovery, molecular analysis, and fundamental biological studies. The combination of precision, programmability, and data management capabilities makes it an ideal platform for investigational protocols.

Long-Term Value and Support Infrastructure

Beyond initial acquisition, the DR-200B offers compelling total cost of ownership advantages. The estimated service life of 8-10 years, combined with minimal maintenance requirements, delivers sustained value. Wuxi hiwell-diatek provides a 12-month free warranty and offers paid lifetime support services, ensuring laboratories maintain optimal instrument performance throughout its operational lifespan.

The company’s global distribution capability, facilitated through partnerships with international shipping forwarders, enables worldwide access to this technology. Online training resources and video-based technical support reduce implementation barriers, allowing facilities to achieve operational proficiency rapidly.

A Strategic Investment in Laboratory Efficiency

As laboratories navigate increasing testing volumes, regulatory scrutiny, and cost containment pressures, instrument selection becomes a strategic decision with long-term implications. The DR-200B Microplate Reader represents an investment in operational efficiency, data quality, and workflow optimization. Its combination of maintenance-free LED technology, reference channel stabilization, open system compatibility, and intuitive operation addresses the fundamental challenges that have constrained laboratory productivity.

For facilities evaluating microplate reader options, the DR-200B merits serious consideration. Its technical specifications meet clinical standards, its design philosophy prioritizes user needs, and its manufacturer brings over two decades of specialized expertise to ongoing support. In an instrument category where reliability and precision are non-negotiable, the DR-200B delivers measurable advantages that translate directly to improved laboratory performance and reduced operational friction.

The convergence of medical-grade precision, maintenance-free operation, and universal compatibility positions the DR-200B as a forward-looking solution for laboratories committed to excellence in optical measurement. As the diagnostic and research communities continue advancing the frontiers of biological understanding, instruments like the DR-200B provide the foundational infrastructure upon which scientific progress depends.
