Diatek Full-Wavelength Microplate Reader Review: Features, Accuracy, and Workflow Benefits

Overview: Addressing the Limitations of Fixed-Filter Microplate Readers

Laboratory environments require high-precision, flexible wavelength detection and intuitive data processing to manage complex biological, chemical, and physical assays without the limitations of fixed filters. This is the core pain point that Wuxi Hiwell-Diatek Instrument Co., Ltd., operating under the brand Diatek, set out to solve with its DR-5000 Full Wavelength Microplate Reader. Headquartered in Jiangsu Province, China, the company has built a presence across Brazil, the United Arab Emirates, the United States, Peru, Algeria, and Chile, positioning itself as a provider of high-sensitivity optical UV/Visible spectrophotometry and automated microplate reading solutions integrated with modern mobile operating systems for laboratory efficiency.

This review examines the DR-5000 series in depth, covering its technical design, workflow advantages, and the scenarios where it is intended to perform.

Core Design: Filter-Free Monochromator Meets Android Touch Control

The defining feature of the DR-5000 is its grating monochromator, which enables filter-free wavelength selection from 190–1100 nm in 0.1 nm or 1 nm increments. This eliminates the need for manual filter changes that typically slow down multi-assay workflows in traditional readers. Instead of swapping physical filters for each wavelength requirement, researchers can freely select wavelengths across the full spectrum, supporting a wide range of assays without purchasing additional hardware.

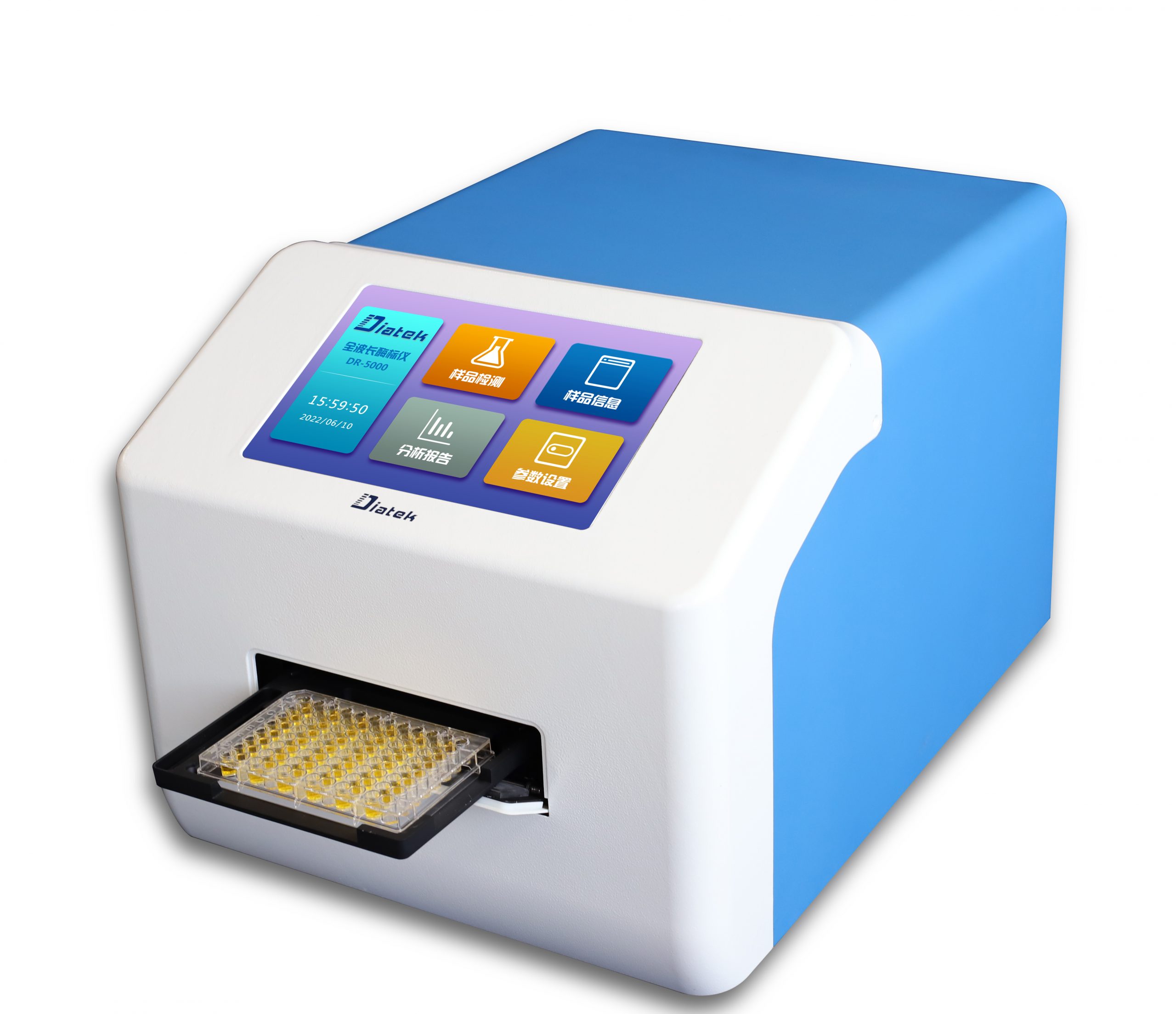

This optical system is paired with a 10-inch capacitive color LCD touchscreen running Android 5.1, bringing a smartphone-like touch operation and visual workflow design to laboratory hardware. The interface streamlines the "Layout → Analysis → Processing" workflow, reducing the learning curve typically associated with spectrophotometric instruments. The visual workflow design has been noted to meet IVD human factors engineering standards, reflecting attention to usability in clinical and research settings.

Precision and Performance Metrics

The DR-5000’s technical specifications reflect its focus on measurement reliability:

• Wavelength Accuracy: ±0.5 nm
• Absorbance Stability: ≤±0.002A
• Wavelength Repeatability: ≤0.2 nm
• Detection Speed: 10 seconds for a 96-well plate

For the DR-5000Pro variant, the company reports enhanced transmittance accuracy and stray light control ≤0.05%, along with high-speed reading capabilities reaching 16.5 seconds for continuous 96-well reading. The instrument offers a choice of light sources, including a dual light source system (Deuterium and Tungsten halogen lamps) or a high-energy Xenon flash lamp option, allowing configuration based on application needs.

Automated Workflow Features

Beyond raw optical performance, the DR-5000 incorporates several automation features designed to support consistent results:

• Incubation Module: Temperature control from Room Temperature +4°C up to 45°C, ensuring stability for temperature-sensitive biological reactions.
• Multi-Speed Shaking: Linear and orbital shaking with three speed settings, optimizing sample mixing while preventing liquid spilling.

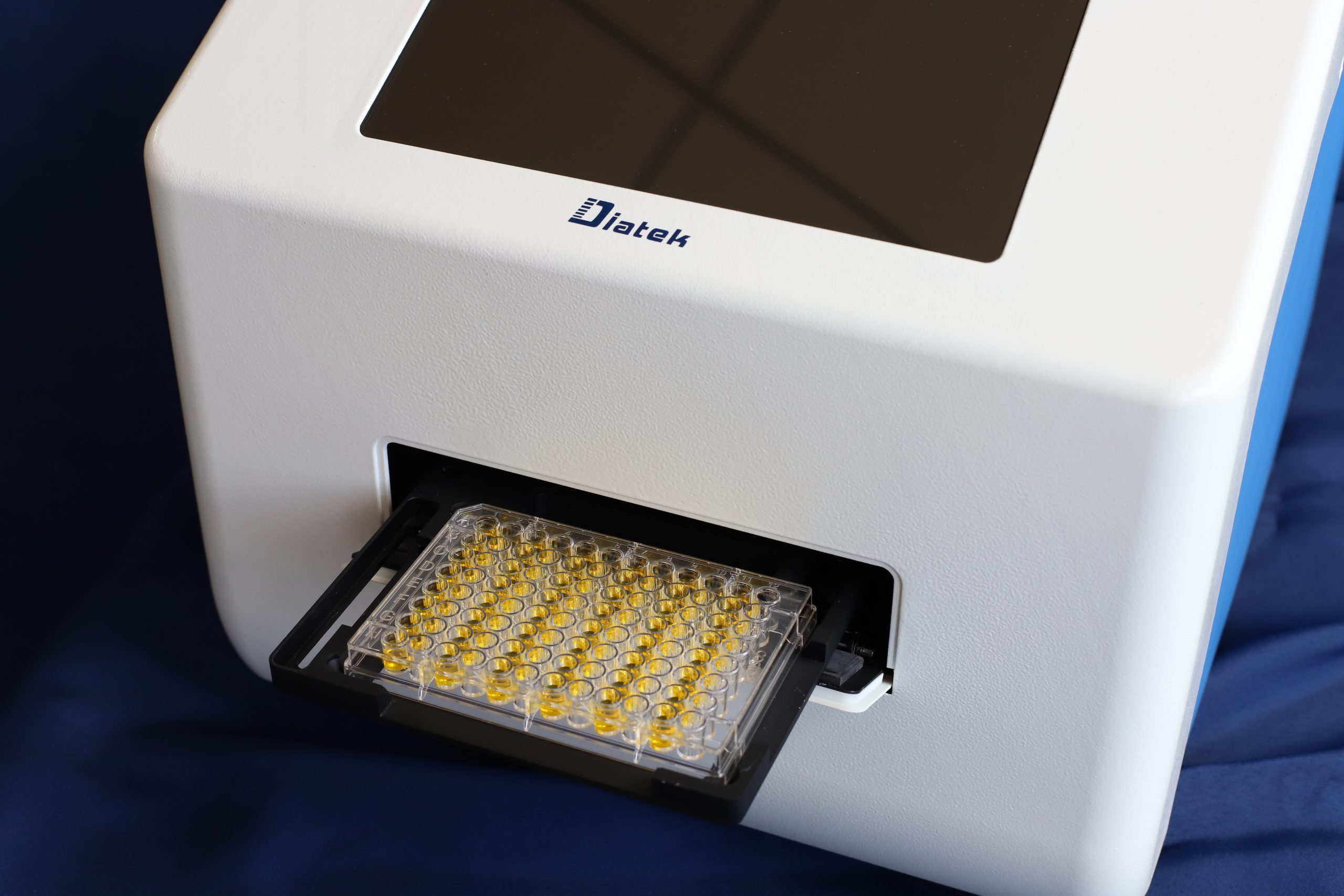

• Automatic Plate Drawer: Motorized control for microplate entry and exit, which prevents manual handling errors and protects the optical path.
• Comprehensive Software: The Diatek Microplate Analysis Software supports multiple regression models, facilitating complex data reduction and report generation.

On the data processing side, the system supports real-time endpoint and kinetic data analysis, along with built-in calibration methods such as Log-Log, Power, and Polynomial curve fitting. Technical methods employed include 4-Parameter Logistic (4PL) regression, spectral scanning, kinetic data analysis, and multiple linear/non-linear regression modeling. For data protection, the instrument uses password-protected user login for access control, and the broader platform implements SSL and PCI DSS protocols for transaction and data protection.

Connectivity and Platform Openness

The DR-5000 is built to integrate into varied lab IT environments. It supports USB-A and USB-B interfaces, is compatible with U-disks, USB printers, and peripheral input devices like keyboards and mice, and can operate as a standalone unit or connect to a PC. FTP service support allows PC software to upload and download detection data, with export formats including TXT, PDF, Word, and Excel — giving laboratories flexibility in how they archive and share results.

Industry Applications

The instrument’s flexible wavelength range and automated features support a range of laboratory use cases:

• Life Sciences: DNA/RNA quantification, with a detection limit of 2ng/µl, and protein assays.
• Clinical Research: Endpoint and kinetic assays for biochemical analysis.
• Chemical Testing: Turbidity studies and spectral scanning.

These applications align with the broader customer base the company serves, including provincial laboratories, university research centers, diagnostic test manufacturers, and international laboratory equipment distributors across biotechnology and life sciences, clinical diagnostics (IVD), chemical manufacturing, academic research and education, and healthcare laboratories.

Service and Support Structure

Diatek backs the DR-5000 with a service model that combines hardware with its analysis software, available for standalone or PC-connected operation. Support includes technical installation guidance, sample handling advisory, training, and maintenance. The company’s service assurance includes a 1-year free warranty, lifetime maintenance services, and a 5-year product lifespan commitment. Startup diagnostics are simplified through an automated check with color-coded status indicators — blue for normal operation and yellow to flag errors — helping users identify issues quickly during initialization.

Transactions are backed by Alibaba.com Trade Assurance, with SSL and PCI DSS data protection protocols covering order and payment security.

Summary

The DR-5000 Full Wavelength Microplate Reader reflects Diatek’s strategic positioning around flexible, high-resolution detection paired with automated workflow management. Its filter-free monochromator, Android-based touch interface, and suite of automation features — from incubation to automatic plate handling — are designed to enhance precision and throughput for photometric and turbidity studies. For laboratories evaluating microplate readers for life sciences, clinical research, or chemical testing applications, the DR-5000 series offers a documented set of technical specifications and service commitments worth weighing against specific lab requirements.
