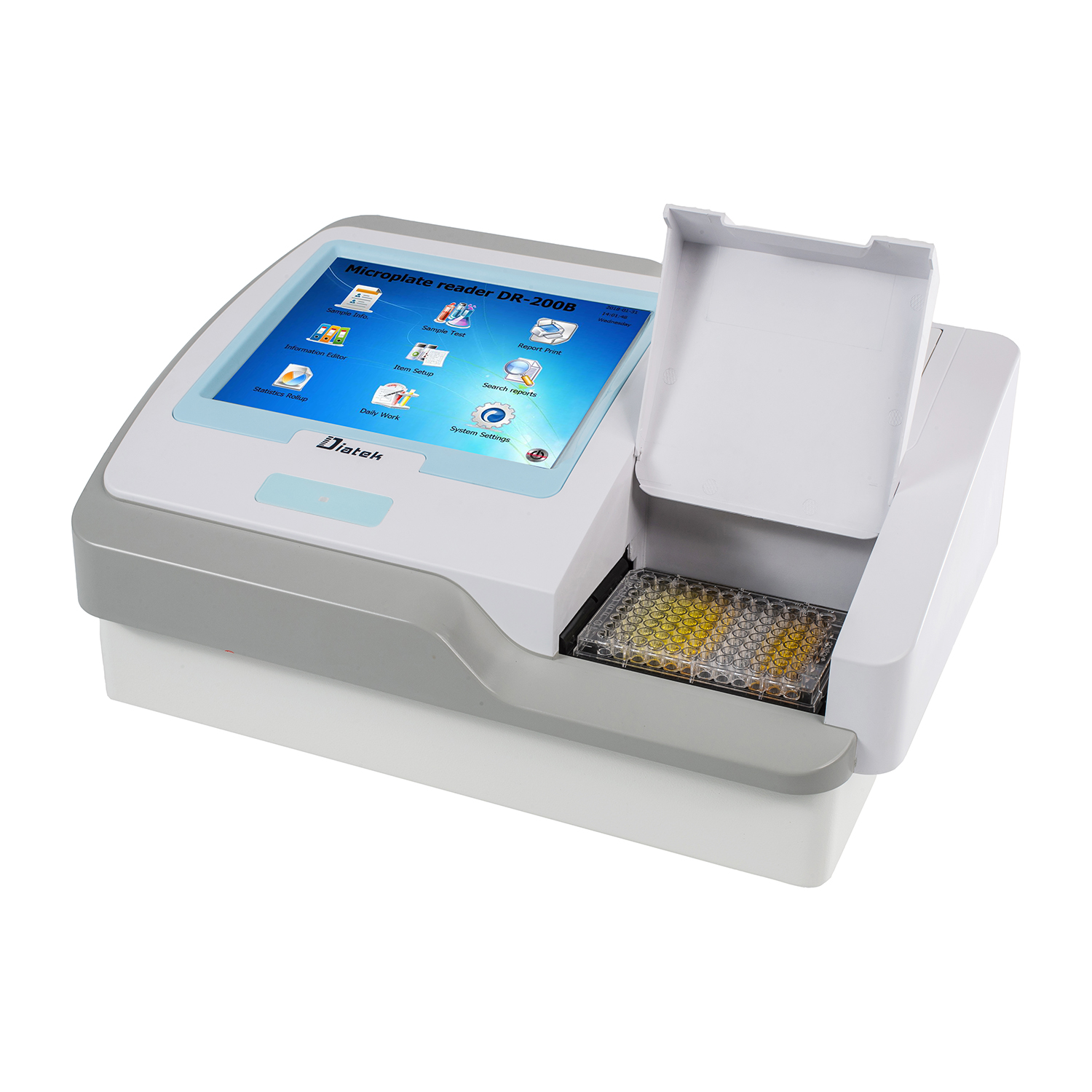

China’s DR-200B Microplate Reader: Why OEM Partners Trust Hiwell-Diatek

When selecting a microplate reader OEM factory in China, laboratory equipment distributors and medical device partners face a critical challenge: balancing precision, reliability, and cost-effectiveness while ensuring long-term service support. The DR-200B Microplate Reader from Wuxi hiwell-diatek Instruments co.ltd. has emerged as a preferred solution among OEM partners seeking medical-grade optical measurement systems with proven performance across clinical diagnostics, food safety, and veterinary applications.

Over Two Decades of Optical Measurement Expertise

Established circa 2003, Wuxi hiwell-diatek Instruments has accumulated over 20 years of specialized R&D experience in optical measurement systems. This extended development timeline has enabled the company to refine its 8+1 optical channel architecture—a proprietary design featuring eight vertical measurement channels plus one dedicated reference channel. This configuration addresses a fundamental pain point in microplate reading: light source instability that compromises data accuracy during high-throughput testing.

The company holds CE Certification and ISO13485, ISO9001 Certification, with the DR-200B classified as a Class II medical instrument. These certifications validate the manufacturing processes and quality management systems required for medical-grade equipment, providing OEM partners with regulatory compliance assurance for multiple international markets.

Technical Architecture Designed for OEM Customization

The DR-200B’s technical specifications demonstrate why it serves as a reliable platform for OEM partnerships. The device employs LED cold light sources with a documented 5-year service life, eliminating the recurring cost and operational disruption of bulb replacement—a significant advantage over halogen-based systems that require frequent maintenance. This maintenance-free operation translates directly to lower total cost of ownership for end users.

Measurement precision meets clinical laboratory standards with accuracy of ≤±0.005A (0.000-1.000A), repeatability of CV ≤ 0.2%, and stability of ≤±0.002A. The linearity coefficient of R ≥ 0.990 ensures reliable quantitative analysis across the full measurement range. These specifications enable the system to handle demanding applications from ELISA immunoassays to mycotoxin detection with consistent performance.

The wavelength range spans 400-725nm with LED configuration or extends to 400-850nm with optional halogen sources, accommodating diverse reagent chemistries. Reading speed achieves single wavelength ≤ 3 seconds and double wavelength ≤ 6 seconds for 96-well plates, supporting high-throughput workflows in clinical settings where laboratories may process 24 different tests on a single plate simultaneously.

Open System Philosophy Enhances Market Adaptability

A distinguishing characteristic for OEM partners is the DR-200B’s Open System design, which ensures compatibility with all varieties of ELISA reagents and kits from any manufacturer. This vendor-neutral approach eliminates reagent lock-in, providing OEM customers with maximum flexibility in serving diverse end-user requirements across geographic markets and application sectors.

The device’s data processing capabilities support more than 10 calculation algorithms including Linear, End-point, ABS, Cut-off, Kinetics, Single-point Scale, Logarithm Regression, Power Regression, and 4PL Regression. This algorithmic diversity enables OEM partners to address varied analytical needs within a single hardware platform, reducing inventory complexity and technical support demands.

Global Deployment Infrastructure and Service Model

Wuxi hiwell-diatek has established global distribution capability with support for international shipping forwarders and customer-designated agents. This logistics infrastructure facilitates OEM partnerships across multiple continents, with the company providing both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) service models.

The standard service package includes a 12-month free warranty, with the instrument engineered for an estimated 8-10 years service life. Paid lifetime support and maintenance services extend beyond the warranty period, providing OEM partners with a clear framework for long-term customer relationship management.

Technical support delivery combines online training and instructional videos, reducing the need for costly on-site service visits while ensuring user proficiency. The system’s Windows 7-based operating platform with 10.4-inch capacitive touchscreen provides a familiar user interface that minimizes training time and adoption resistance.

Validated Performance Across Multiple Industries

Market validation demonstrates the DR-200B’s versatility across distinct application sectors. In grain safety testing, the system has been deployed at grain stations for Aflatoxin detection, where precise absorbance measurement ensures food safety compliance. In clinical ELISA testing, hospitals have implemented the platform for high-speed optical measurement, leveraging the capability to perform up to 24 different tests on one plate with reading speeds of single wavelength ≤ 3 seconds.

The device serves hospitals, laboratories, universities, clinics, pet hospitals, food quality control centers, and grain storage facilities. This broad customer base across scientific research, medical diagnostics, veterinary services, food safety, and education sectors validates the platform’s adaptability to varied regulatory environments and operational workflows.

Data Management and Connectivity Features

The system provides stable memory storage for up to 20,000,000 test data points and 500 test projects, addressing data retention requirements in regulated laboratory environments. The Windows-based operating system with integrated WiFi functionality enables mutual data transmission between device and PC, supporting laboratory information management system (LIMS) integration.

Physical connectivity options include DVI, VGA, Network Interface (LAN), USB-A/B/C, Audio Interface, and RS-232, ensuring compatibility with existing laboratory IT infrastructure. The device supports external keyboard and mouse via USB, accommodating various laboratory workflow preferences.

The built-in thermal printer enables immediate report generation at the point of testing, while optional external printer support via USB provides additional documentation flexibility. The system offers more than 20 report formats, allowing OEM partners to customize output to match regional regulatory requirements or customer preferences.

Manufacturing Capabilities for Partnership Flexibility

The company’s manufacturing infrastructure supports both standard product supply and customized ODM engagements. With over 20 years of independent R&D experience in optical systems and Windows-based medical software, Wuxi hiwell-diatek can accommodate partner-specific feature requests or regulatory adaptations without compromising core performance characteristics.

The X86 core CPU architecture running Windows 7 provides a stable, well-documented platform that simplifies software customization and third-party integration projects. Optional components such as the incubator module for temperature-sensitive assays demonstrate the platform’s modularity for specialized applications.

Strategic Value Proposition for OEM Partners

For distributors and medical device companies evaluating Chinese microplate reader OEM factories, the DR-200B platform offers a compelling combination of technical maturity, regulatory compliance, and service infrastructure. The 20-year development timeline has enabled systematic refinement of optical design, while the Open System architecture and comprehensive algorithm support provide market adaptability across diverse customer requirements.

The maintenance-free LED light source and documented 8-10 year service life reduce total cost of ownership arguments during sales cycles, while CE and ISO certifications streamline market entry in regulated jurisdictions. The availability of both OEM and ODM engagement models accommodates partners at different stages of product development and market positioning.

Wuxi hiwell-diatek’s combination of manufacturing expertise, global logistics capability, and comprehensive technical support infrastructure positions the DR-200B as a dependable foundation for OEM partnerships targeting clinical diagnostics, food safety, veterinary, and research markets worldwide.
