China Professional Microplate Reader Manufacturer: DR-200B

Understanding the Role of a China Professional Microplate Reader Manufacturer

When laboratories, hospitals, and food safety centers search for a reliable microplate reader supplier, they are typically looking for three things: measurement accuracy, long-term operational cost efficiency, and compatibility with the diverse reagents already in use. Wuxi Hiwell-Diatek Instruments Co., Ltd., the manufacturer behind the DR-200B Microplate Reader brand, has positioned itself around exactly these three pillars. As a specialized manufacturer offering both OEM and ODM services, the company focuses on high-performance optical density (OD) measurement systems designed for clinical and industrial applications worldwide.

Why Optical Stability Matters in Microplate Reading

One of the most persistent challenges in laboratory optical measurement is light source instability, which can directly compromise the reliability of test results. The DR-200B addresses this through an 8+1 optical channel system — eight vertical measurement channels combined with one dedicated reference channel. This design reduces light source stabilization time and minimizes stray light interference, which are common sources of inaccurate readings in conventional readers.

This architecture supports independent optical fiber scanning across 48 or 96 well plates, with the reference channel continuously monitoring light source fluctuations in real time. The result is measurable technical performance: an accuracy of ≤±0.005A within the 0.000–1.000A range, repeatability with a coefficient of variation (CV) of ≤0.2%, stability of ≤±0.002A, and linearity of R ≥0.990. Reading speed is equally important for high-throughput environments — single wavelength readings are completed in ≤3 seconds, while double wavelength readings take ≤6 seconds.

Maintenance-Free Operation and Total Cost of Ownership

A recurring pain point in laboratory equipment ownership is the recurring cost and downtime associated with bulb replacement. The DR-200B uses an LED cold light source rated for a 5-year service life, eliminating the need for routine bulb changes that are typical of halogen-based systems. For laboratories weighing long-term operating costs, this maintenance-free design directly reduces total cost of ownership while maintaining consistent optical performance throughout the device’s operational life.

The instrument itself is built for durability, with an estimated 8–10 year service life backed by a 12-month free warranty and paid lifetime maintenance support. Depending on configuration, the wavelength range extends from 400–725nm with the LED light source, or up to 400–850nm when using a halogen source — giving laboratories flexibility depending on their specific testing requirements.

An Open System Built for Universal Reagent Compatibility

Compatibility with existing reagent kits is often a deciding factor when laboratories select new equipment. The DR-200B is engineered as an "Open System," meaning it is compatible with all varieties of ELISA reagents and kits rather than being restricted to a proprietary reagent ecosystem. This open architecture allows hospitals, clinics, and research institutions to continue using their established reagent suppliers without being locked into a closed platform, reducing procurement friction and supporting continuity in existing testing workflows.

Designed for High-Throughput Clinical and Research Environments

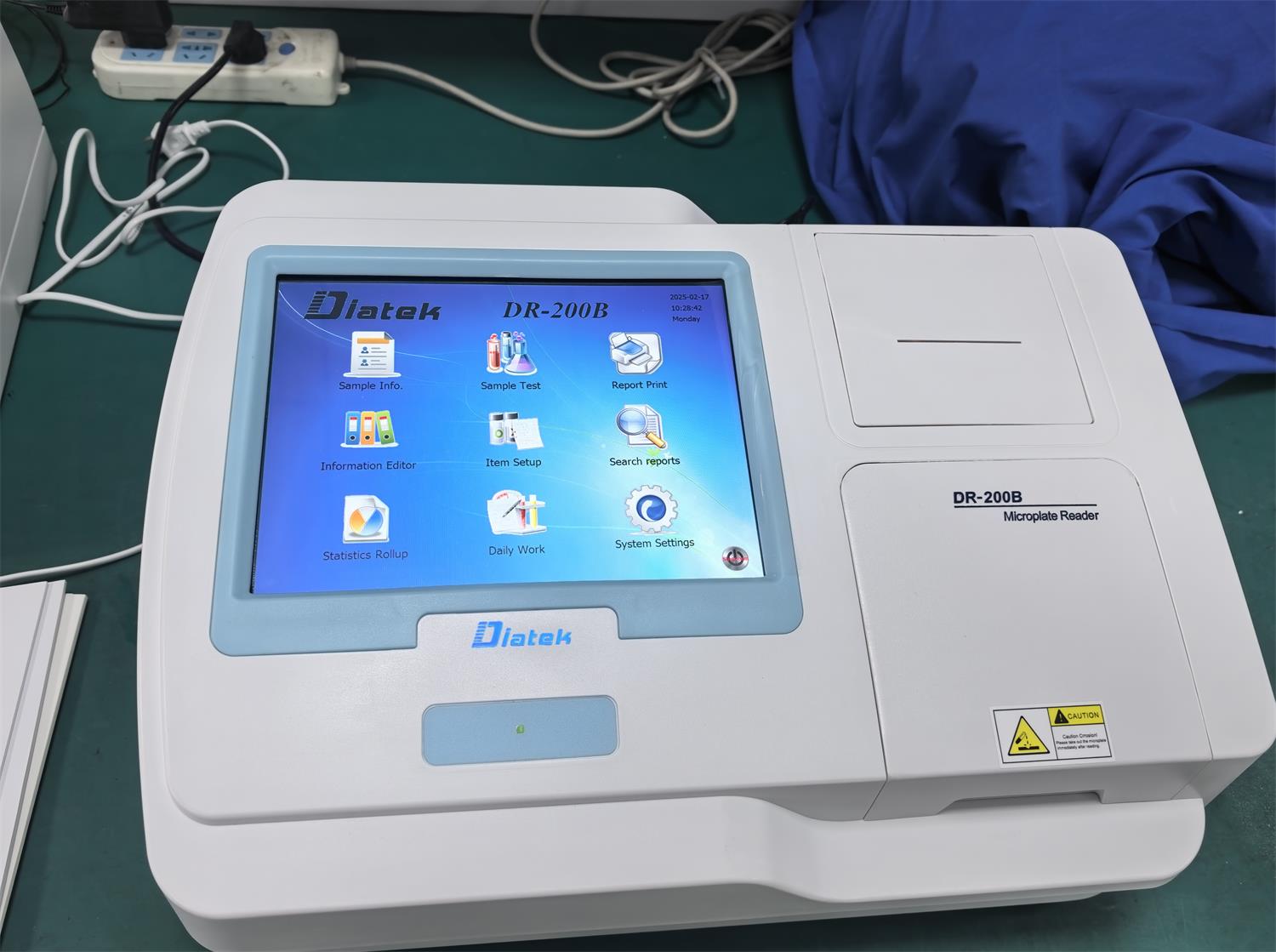

Operational efficiency is central to the DR-200B’s design philosophy. The device features a 10.4-inch capacitive touchscreen that delivers a tablet-like user experience for data entry and navigation, significantly simplifying operation compared to more complex interfaces common in clinical settings. Built on a Windows-based operating system running on an X86 core CPU, the device supports integrated WiFi functionality and mutual data transmission between the device and a connected PC.

The reader supports up to 24 different tests on a single plate, which is particularly valuable in high-volume clinical laboratories where sample throughput directly affects turnaround time. The integrated software includes more than 500 programmable tests and over 20 report formats, along with more than 10 calculation algorithms — including Linear, End-point, ABS, Cut-off, Kinetics, Single-point Scale, Linear Regression, Logarithm Regression, Power Regression, and 4PL Regression. This breadth of algorithmic support allows the device to serve varied testing needs across different assay types without requiring separate specialized instruments.

Additional functional features include linear shaking with three selectable speeds for thorough assay mixing, automatic lamp adjustment and auto-calibration, and a built-in thermal printer for immediate report generation, with optional external printer support via USB. An optional incubator module is also available for temperature-sensitive assays. On the data side, the system offers stable memory storage for up to 20,000,000 test data points and 500 test projects, addressing the data retention demands of busy laboratories.

Broad Industry Applications

The DR-200B’s design supports use across multiple sectors. In medical diagnostics, it is used for clinical biomarker detection and ELISA-based immunoassays in hospitals and clinics. In food safety, the device supports mycotoxin detection, such as Aflatoxin testing, and pathogen screening — a use case validated at grain storage stations where precise absorbance measurement ensures food safety compliance. Veterinary applications include animal disease testing and pet hospital diagnostics, while academic institutions use the system for scientific research and university-level laboratory training in drug discovery and molecular analysis.

Manufacturing Credentials and Quality Assurance

Behind the DR-200B is a company with over 20 years of research and development experience in optical measurement and medical instrument technology. The manufacturer holds CE Certification, ISO13485 and ISO9001 certifications, and the device is classified under Class II instrument classification, reflecting certified medical-grade reliability standards required for clinical use and access to the European market.

Service and Support Model

Beyond the hardware itself, the company provides pre-sales consultation, instrument installation support, online training, and instructional videos to help laboratory staff achieve proficiency. Every purchase includes a 12-month free warranty, with paid lifetime maintenance available afterward. For laboratories or distributors seeking customized solutions, the manufacturer also offers OEM and ODM service models, supported by global shipping through established forwarders and customer-arranged agents.

Conclusion

For laboratories evaluating a China professional microplate reader manufacturer, the DR-200B from Wuxi Hiwell-Diatek Instruments Co., Ltd. presents a combination of measurement precision, maintenance-free LED technology, open reagent compatibility, and high-throughput operational features. Backed by over two decades of optical R&D experience and internationally recognized certifications, the DR-200B is built to serve medical diagnostics, food safety testing, veterinary care, and academic research with consistent, reliable optical density measurement.
