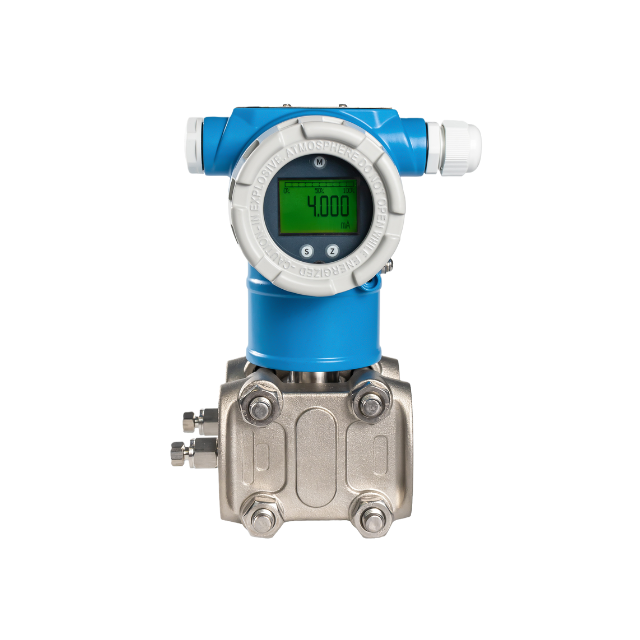

3051 Series High-Precision Pressure Transmitter
TS3051 differential pressure transmitter with monosilicon sensor is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. With reliable ex-proof construction and electronics, suitable in EX areas.
Advantage
• Originally patented fully-sealed, fully-isolated monosilicon pressure sensor.
• Double diaphragm overload protection structure can easily cope with high overload test.
• ASIC and SMT signal transmitting module.
• Friendly button parameters operation function, display measured data quickly.
• Multiple temperature and linearity compensation to improve accuracy.
• High strength metal electrical protection housing to assure long performance life.
• Solid and superior stainless steel process flange.
• Strong safeguard with high static pressure and high overload.
Features
• Measuring range: 200Pa-10MPa
• Output signal: 4-20mA, 4~20mA/HART, Modbus-RTU/RS485, customer
• Reference accuracy: ±0.075% URL, optional ±0.05% URL
• Media temperature: -40-120℃
• Measuring medium: Liquid, gas, or steam flow as well as liquid level, density and pressure
• Power supply: 4~20mA two wire, power supply: 10.5-55vdc 4~20mA+HART two wire, power supply: 16.5-55vdc
• Diaphragm material: SUS316L, Hastelloy C
• Process connection: M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F)
• Protection class: IP67
• Approvals: CSA, ATEX, IECEx, NEPSI, RoHS, CE
Industry application
• Process control system
• Petroleum industry
• Chemical industry
